Series Type: Unifi
Website Link: https://store.ui.com/us/en/pro/category/switching-utility/products/unifi-flex-xg
Model: USW-FLEX-XG
Type: managed, 10GbE, Layer 2 Gigabit switch

Description: A compact, 5-port, Layer 2 switch that supports 10 GbE speeds and can be powered with PoE or a 5V USB-C adapter.

  • 4 1/2.5/5/10 GbE ports
  • 1 GbE PoE+ input port for power

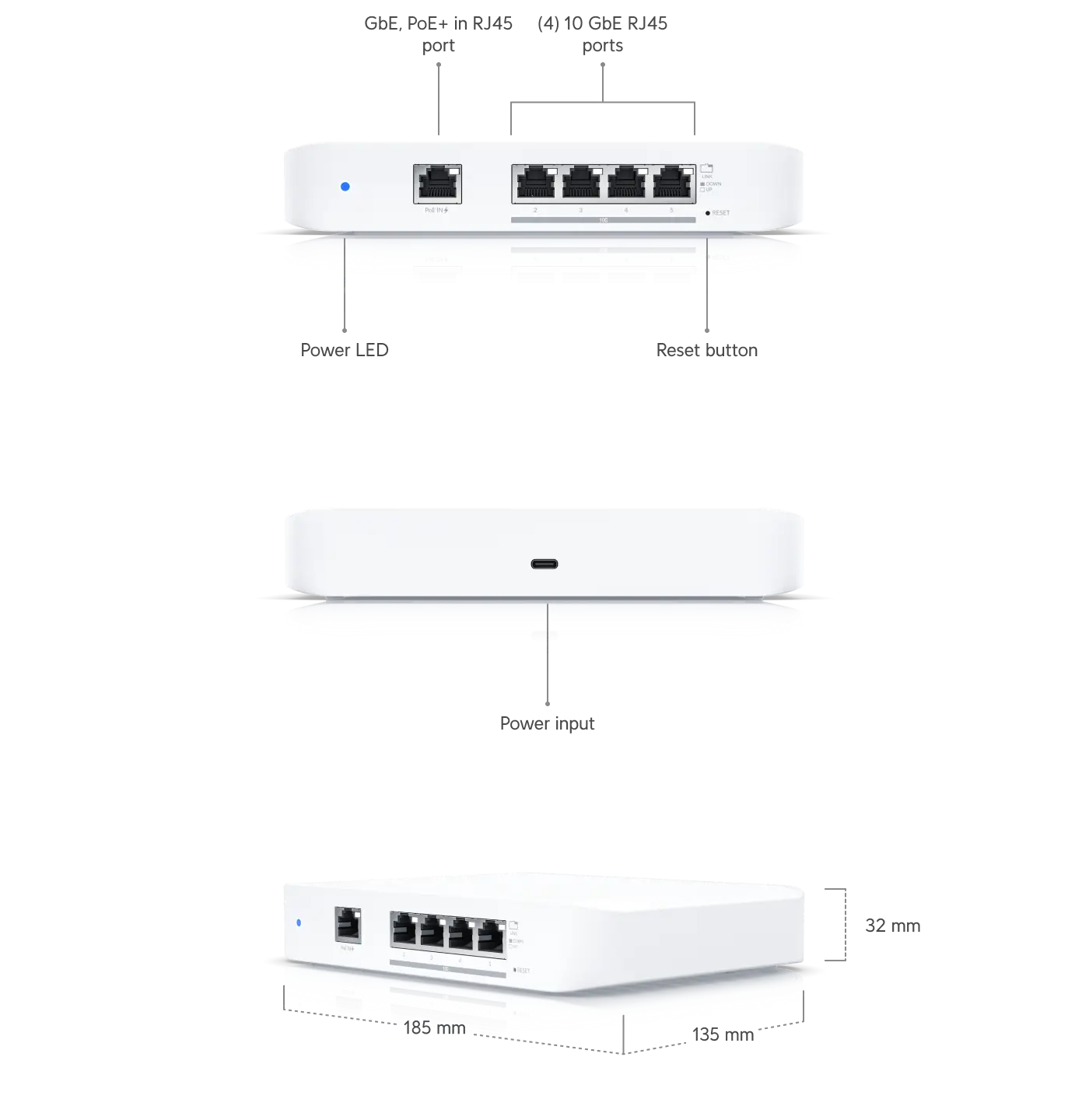

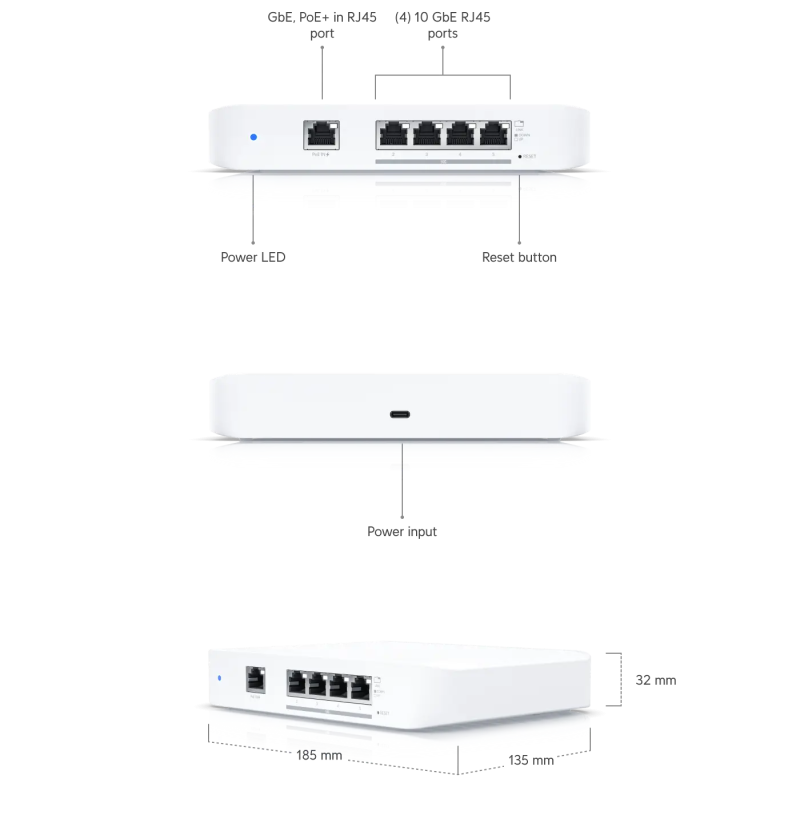

USW-FLEX-XG
Technical Specifications
Dimensions 135 x 185 x 32 mm (5.31 x 7.28 x 1.27")
Weight 1.2 kg (2.65 lb)
Enclosure material Polycarbonate
Hardware
Networking interface (1) GbE, PoE+ RJ45 port
(4) 10 GbE RJ45 ports
Management interface Ethernet In-Band
Total non-blocking throughput 41 Gbps
Switching capacity 82 Gbps
Forwarding rate 61.012 Mpps
Max. power consumption 25W
Power method (1) PoE+, 50—57V DC, 25W
(1) USB Type-C, 5V DC, 5A
Power supply PoE+ ( Pins 1, 2+/3, 6- or 4, 5+/7, 8- )
AC/DC power adapter, 5V DC, 5A, 1.5 m cord (Included)
Supported voltage range 90—264V AC (Adapter)
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
Button Factory reset
Operating temperature -5 to 45° C (23 to 113° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System (1) Power, blue/white
Flashing white: bootup in progress
Flashing blue: firmware upgrading
Steady white: factory defaults, awaiting adoption
Steady blue: device is adopted
Ethernet White: link/activity
Application Requirements
UniFi Network Version 6.1.67 and later
